MOUNTAIN CREEK CULVERT - RICHMOND SHIRE COUNCIL

CLIENT:

DURATION OF SERVICES:

ESTIMATED PROJECT VALUE:

NO. STAFF INVOLVED:

RICHMOND SHIRE COUNCIL

AUGUST 2021 - DECEMBER 2022

$1.19 MILLION

2

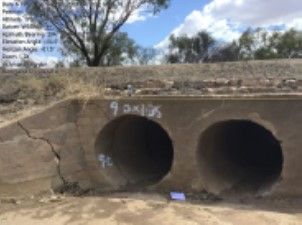

The existing structure which crosses Mountain Creek along Richmond Woolgar Road sustained partial damage to the culverts and batter protection from flood waters.


Our team was engaged to provide project management of the design phase as well as the construction phase. This included a Development Application compliant against the SDAP State Code 18 for Waterway Barrier Works.

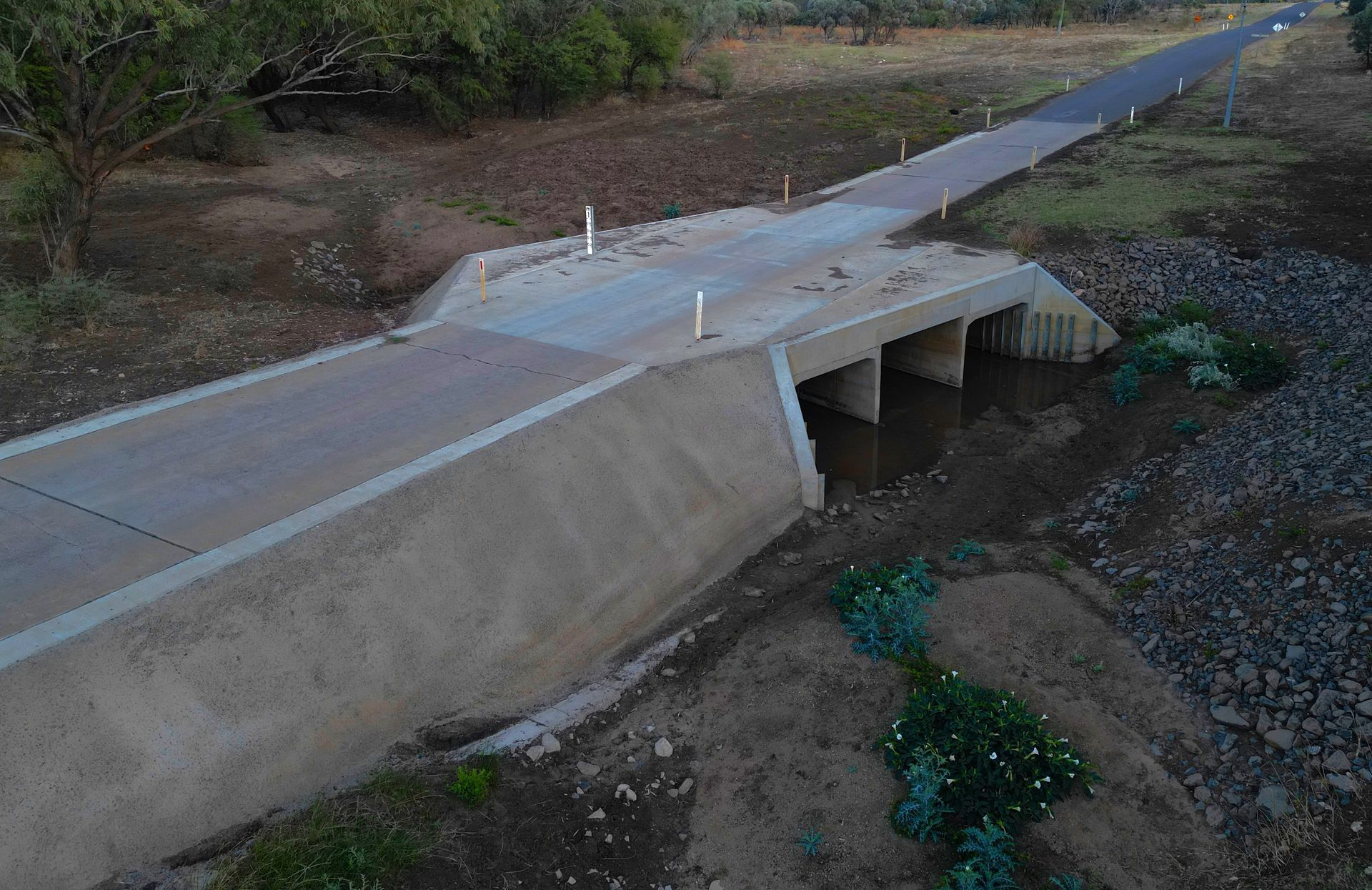

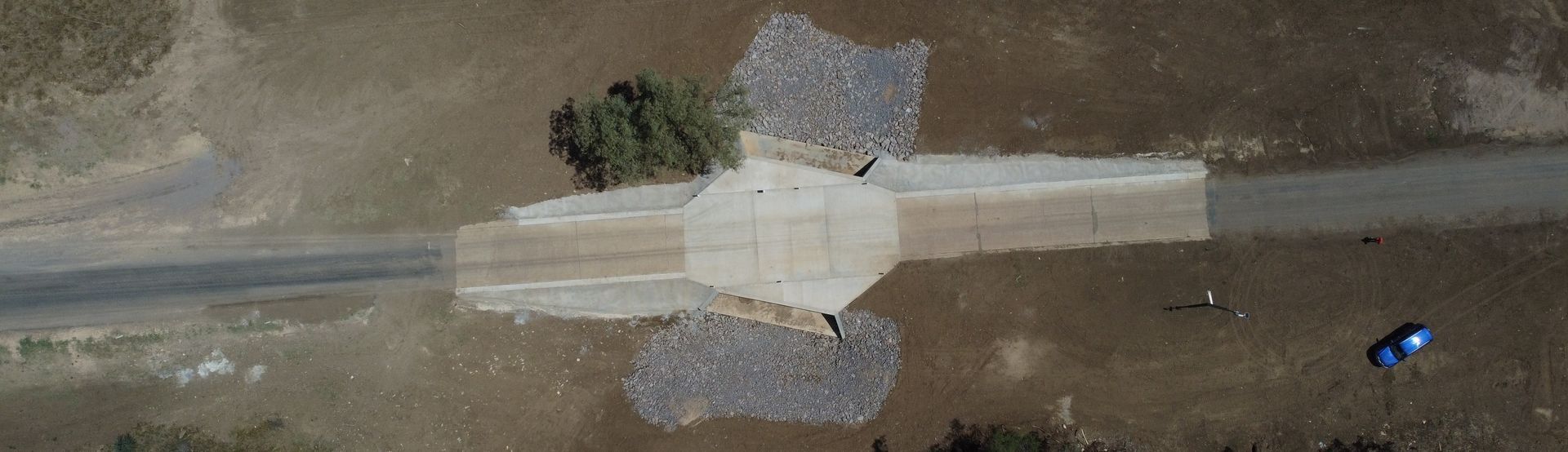

The design incorporated the replacement of 3 x 1350mm RCP’s with two 1800 x 3000 mm RCBC’s with a 3.8m spanning slab. The culverts were removed and replaced with only 20m of the deck slab replaced from the 80m long causeway. New batter protection was constructed over the existing failing batters to minimise impact to the existing structure. The new culverts included fish baffles to the wingwalls and inside the culverts.



Redfrost provided Superintendent services for contract administration and site inspections.

PROVISION OF SERVICES

  • Superintendent
  • Structures Inspector
